AI 2.10 • Performance Line

Hybrid integrated amplifier



CANOR’s AI 2.10 combines a tube preamplifier with Class D power amplifiers and delivers an output power of 2 x 150 watts into 4 ohms.

Highlights



  • Hybrid integrated amplifier with an output power of 2 x 150 watts at 4 ohms and 2 x 100 watts at 8 ohms
  • Tube preamplifier with two selected 6922 tubes and precise relay volume control
  • Class D power amplifier with a filtered and tuned linear power supply
  • Oversized input transformer (toroidal transformer) reduces noise to a minimum
  • Circuit boards manufactured using premium CMT™ technology
  • XLR inputs with a fully balanced signal up to the power amplifier
  • Four RCA and two XLR inputs for connecting numerous audio sources
  • Only 12 cm high for easy placement in cabinets and shelves
  • Recommended retail price: 3.849,– €



Animated 3D view

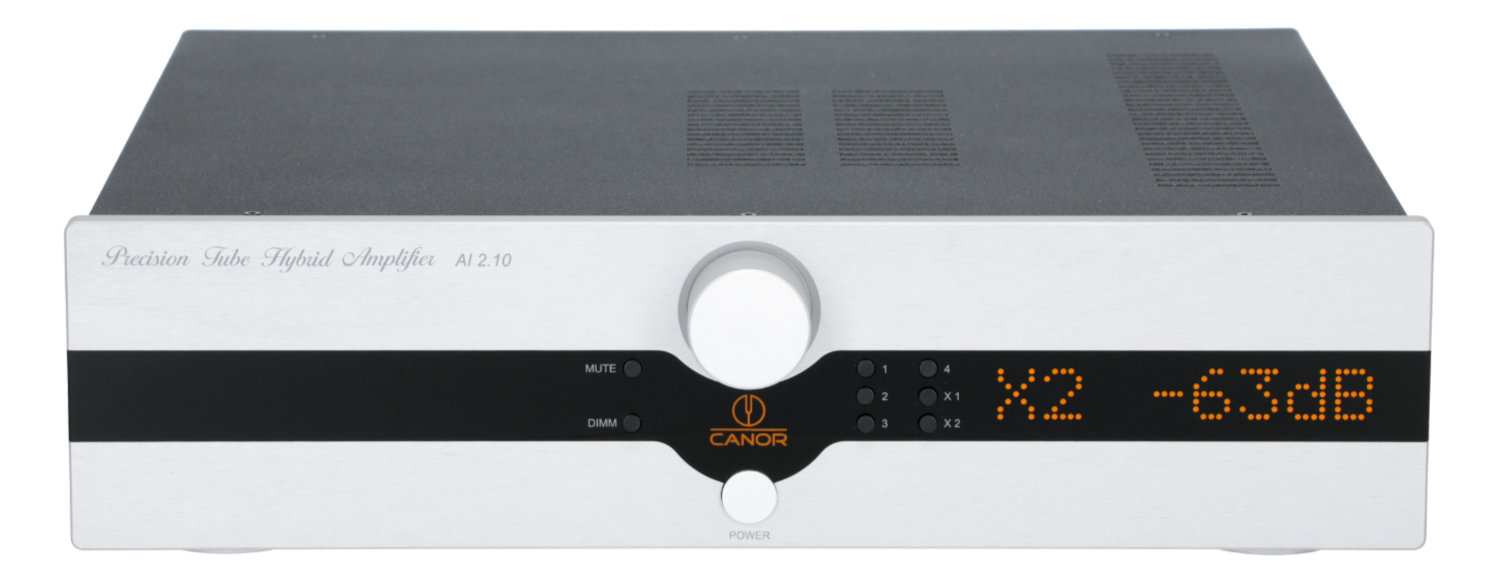

Silver-coloured housing design

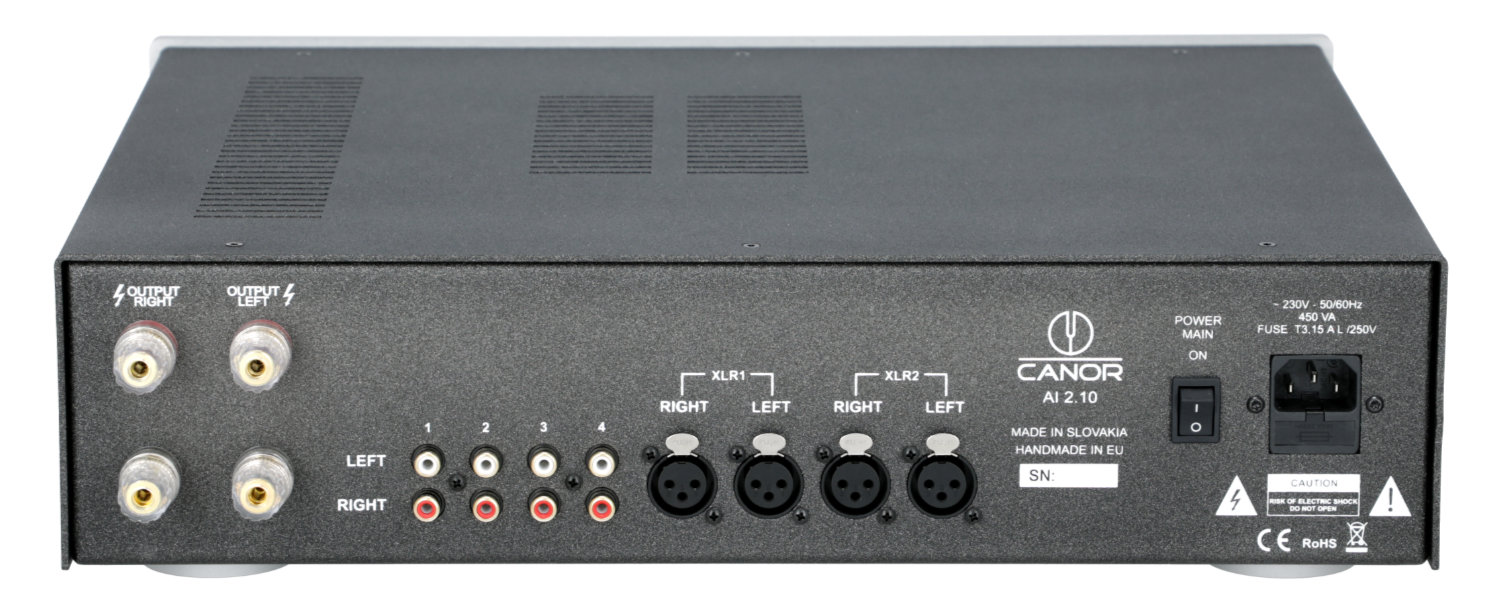

Rear view

Specifications
Output power: 2 x 150 W / 4 Ω
2 x 100 W / 8 Ω
Input sensitivity: 400 mV / 150 W / 1 kHz
Frequency range: 20 Hz - 20 kHz ±0,3 dB/ 5 W
Input impedance: 30 kΩ
Inputs: 4 x RCA, 2 x XLR
Total harmonic distortion: < 0,02 % / 1 kHz, 5 W
Signal-to-noise ratio: 95 dB
Tube complement: 2 x 6922
Power: 230 V / 50 Hz / 420 VA
Dimensions (W x H x D): 435 x 120 x 405 mm
Weight (net): 15 kg
