Specifications |
Output power |
2 x 20 W an 4 u. 8 Ω - Triode 2 x 40 W an 4 u. 8 Ω - ultralinear |
Inputs sensitivity |
500 mV |
Frequency range |
(10 – 50 000) Hz ±0,5 dB / 5 W |
Input impedance |
30 kΩ |

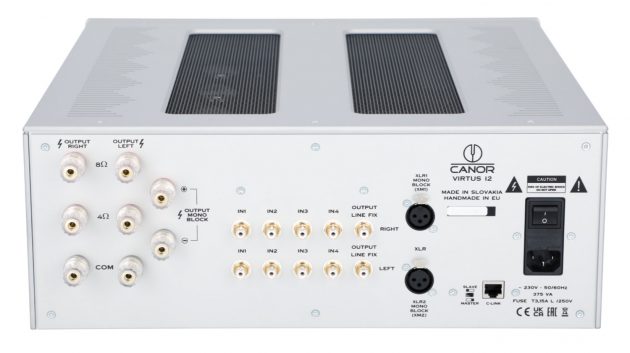

Inputs |
4 x RCA, 2 x XLR (XLR are active in monoblock connection only) |
Outputs |
1 x RCA Line-out (Line fix) |
Total Harmonic Distortion |
<0,05% / 1 kHz, 5 W |
Signal-to-noise ratio |
> 95 dB |
Filtration capacity |
2200uF / 500V |
Tube complement |
4 x KT88 / 1 x 12AX7 / 2 x 12AT7 |
Power |
230 V / 50 Hz / 375 VA |
Dimensions (w x h x d) |
435 x 170 x 485 mm |
Weight (net) |
26 kg |
