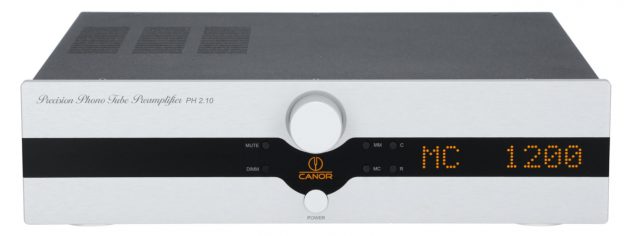

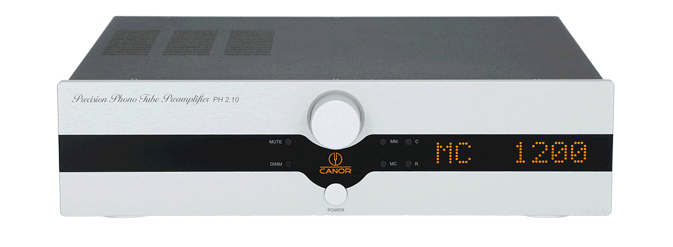

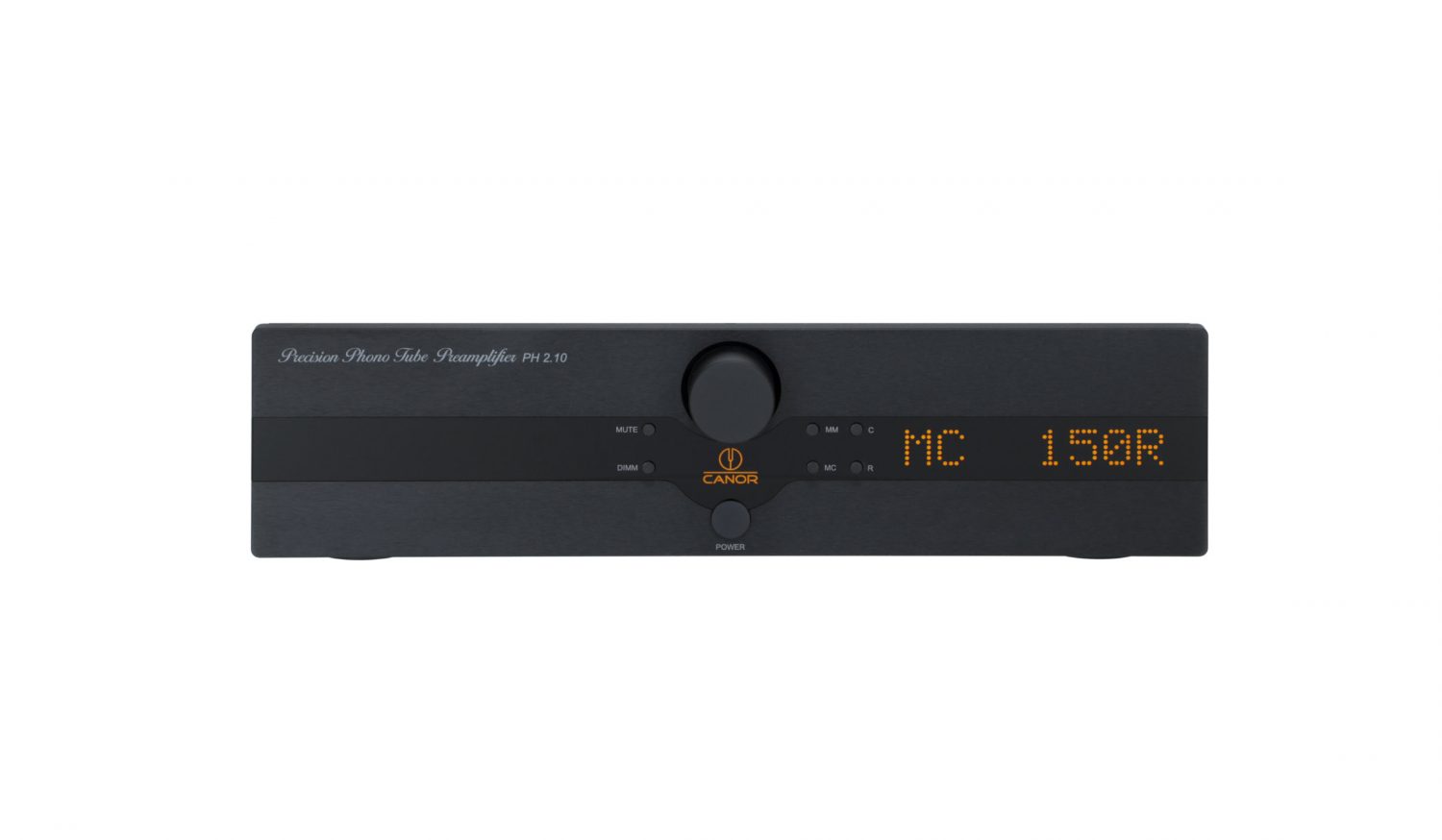

PH 2.10 Performance Line

All-Tube Phono-Preamplifier

  • Tube-Phono-Preamplifier for both MM and MC phono cartridges
  • Four tubes strictly selected with narrowly tolerated parameters
  • Wiring circuitry without any overall feedback
  • Circuit boards manufactured in premium CMT™ technology
  • Vacuum-impregnated transformer core
  • Transformer potted in a special anti-vibration compound
  • We only use high-quality polypropylene capacitors in the signal path
  • If a turntable is fitted with two tonearms, one having MM phono cartridge installed and the other MC, both can be connected simultaneously without mutually affecting each other
  • High variability of gain settings, resistances and capacitances settings for all types of phono cartridges
  • a high-quality step-up Lundahl transformer for MC phono cartridges
  • SRP 3.849,– €

Specifications
MM: 50,150,270,370,520,620,740,840pF / Gain: 47dB
MC: 10,20,40,80,150,300,600,1200Ohm / Gain: 71dB
Output impedance: 500 Ohm
Inputs: RCA → MM / RCA → MC
Output: RCA
Total harmonic distortion: MM/MC <0,2 % / 1 VRMS
Subsonic filter: 18 dB/Octave
RIAA accuracy: 0,3 dB/20 Hz - 20 kHz
Signal-to-noise ratio MM: ≤84 dBV (87dBV – IEC -A)
Signal-to-noise ratio MC: ≤80dBV (82 dBV – IEC -A)
Tubes used: 2 x 12AX7 and 2 x 12AT7
Power: 230 V / 50 Hz / 70 VA
Dimensions (W x H x D): 435 x 120 x 405 mm
Weight (net): 14 kg
