AI 1.20

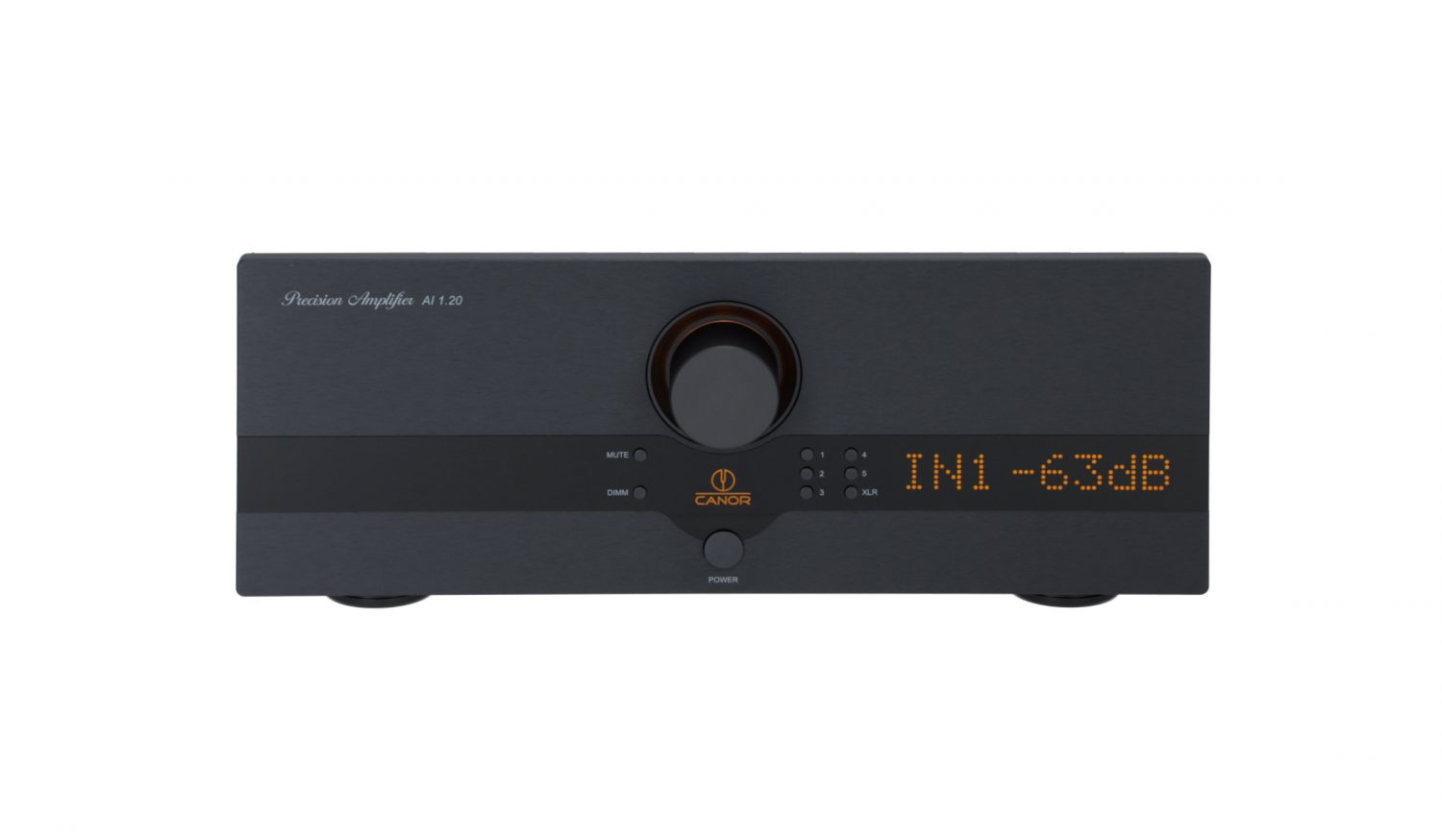

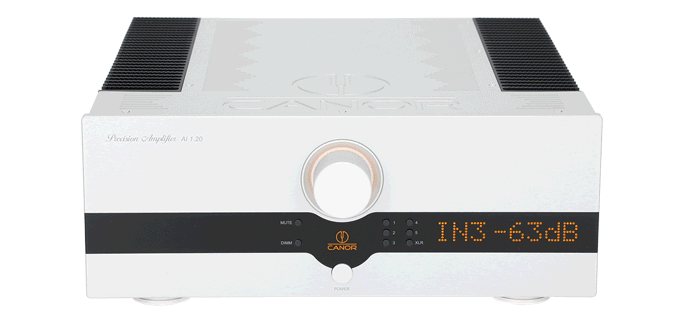

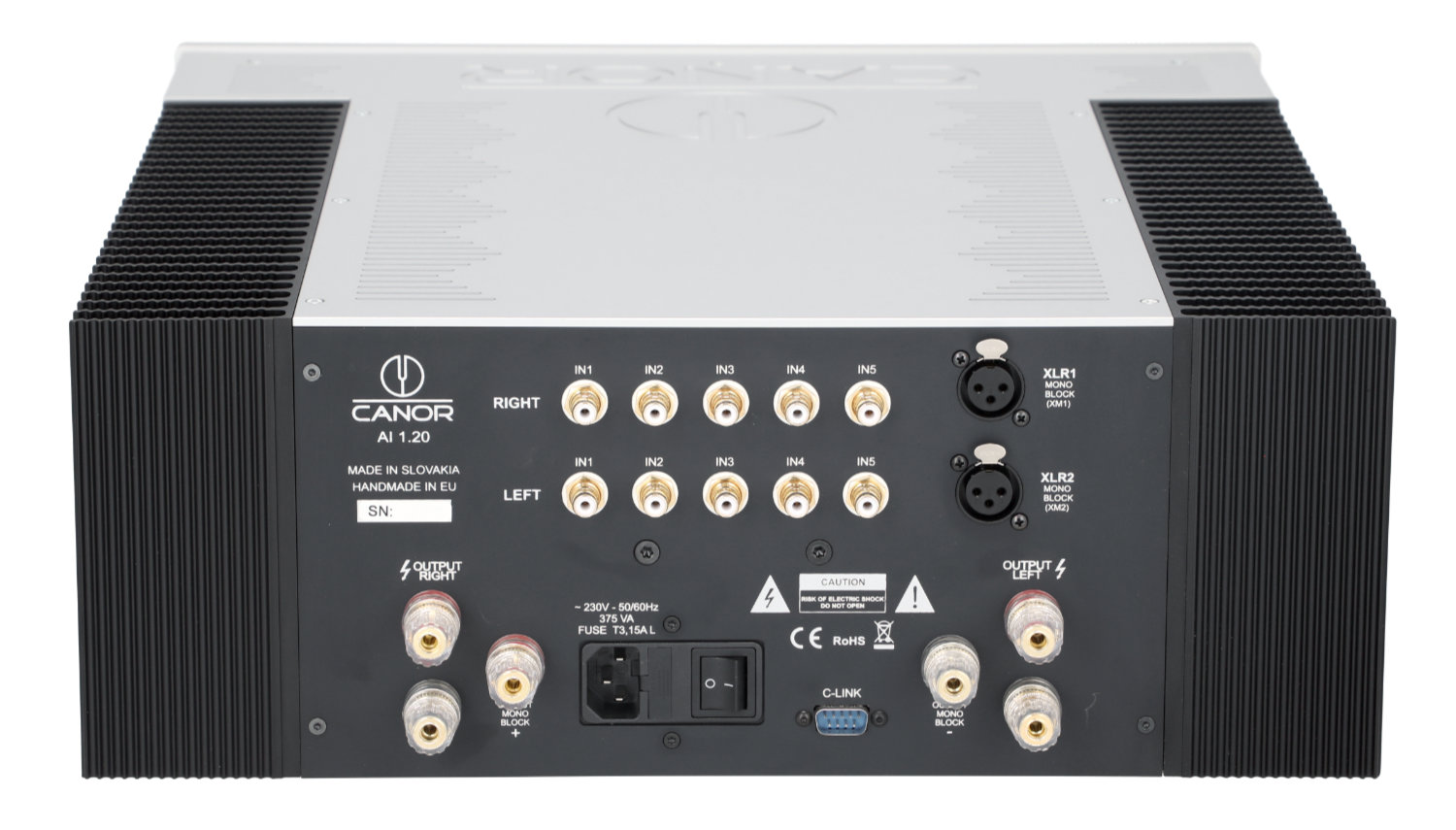

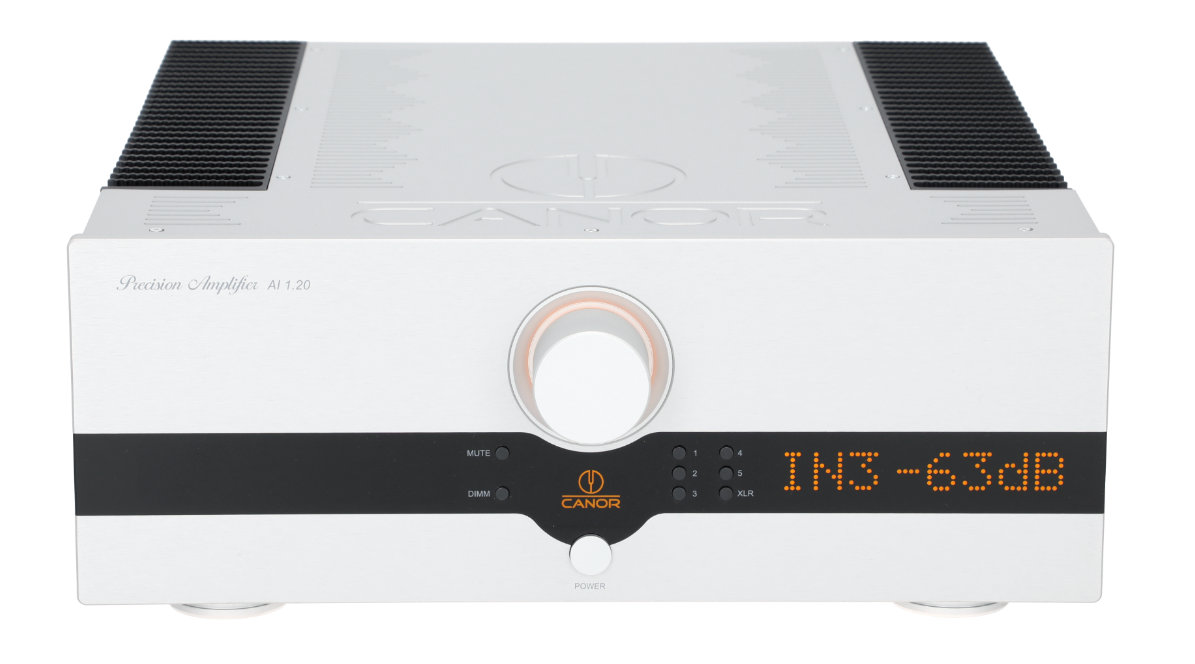

Integrated Solid-State Class A Amplifier

  • An integrated solid-state amplifier in pure class A up to 50W per channel
  • a relay attenuator with two standalone blocks for each channel
  • PCB`s utilize our premium CMT™ technology (CANOR® PCB Milling Technology), it is the way we mill printed circuit boards
  • CMT™ technology originated in a long-standing endeavour to improve the sonic performance of our products
  • Power supply units with filtered out interfering signals from the mains supply
  • interference-rejection and as small as possible leakage field ensure custom-wound toroidal transformers
  • 264 000uF of filtering capacitance simulates nearly stabilized supply voltage
  • an option of synchronous control enables the use of two amplifiers in a monoblock mode without the need of using an extra preamplifier and that is a Master/Slave mode
    with an output power of 100W per channel
  • Reviews
  • SRP 6.490.00 €

Our combination proposal

Click here for more FinkTeam information





Specifications:
Output Power 2 x 50 W à 4 Ω
2 x 30 W à 8 Ω
Sensibilité d'entrée: 290 mV
Frequency range: 20 Hz - 25 kHz ± 0,5 dB/ 5 W
Input impedance: 33 kΩ
Inputs: 5
Total harmonic distortion: < 0,0009 % / 1 kHz, 5 W
Signal-to-noise ratio: 90 dB
Power: 230 V / 50 Hz / 420 VA
Dimensions (W, H, D): 435 x 170 x 485 mm
Weight (net): 28 kg
