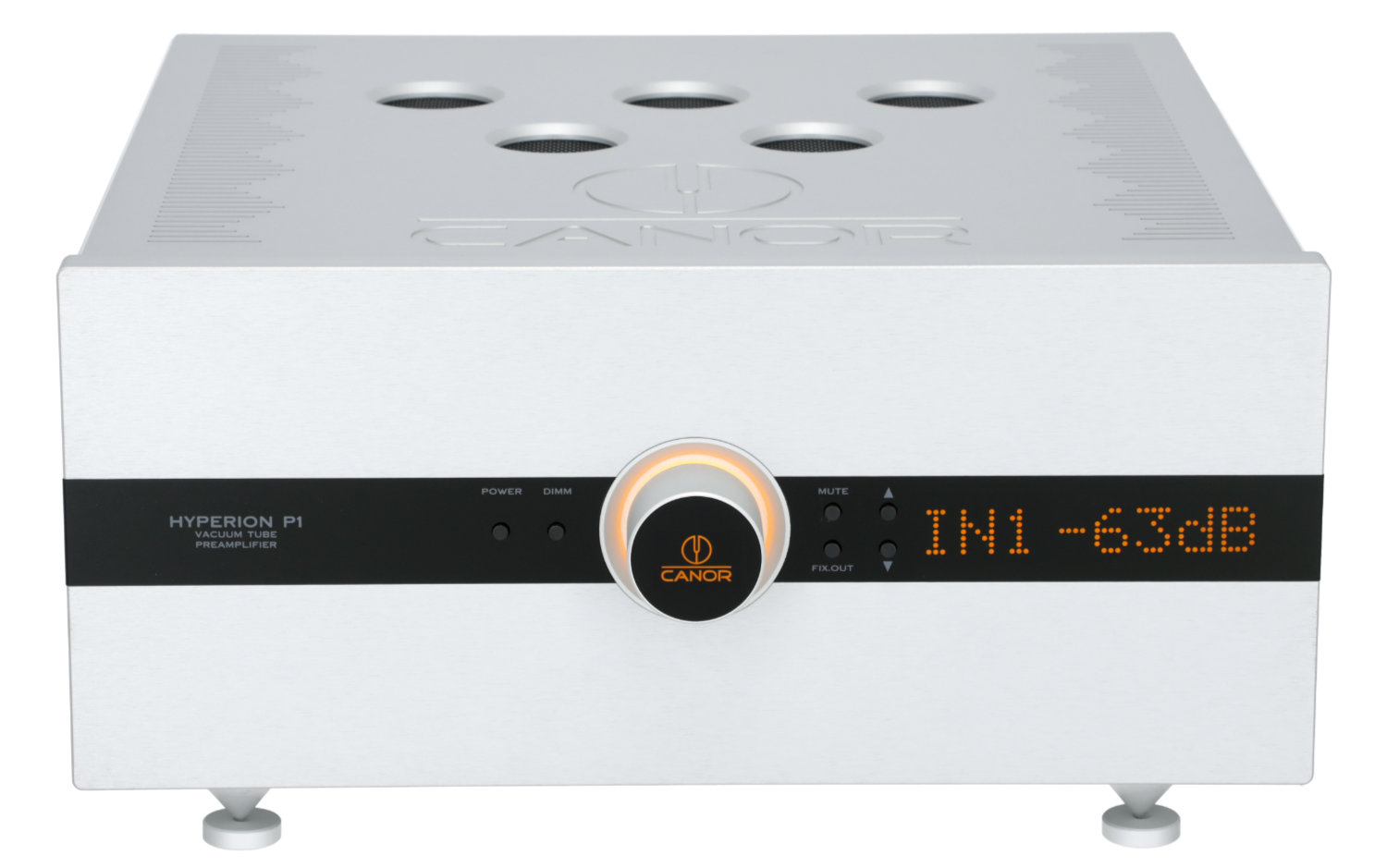

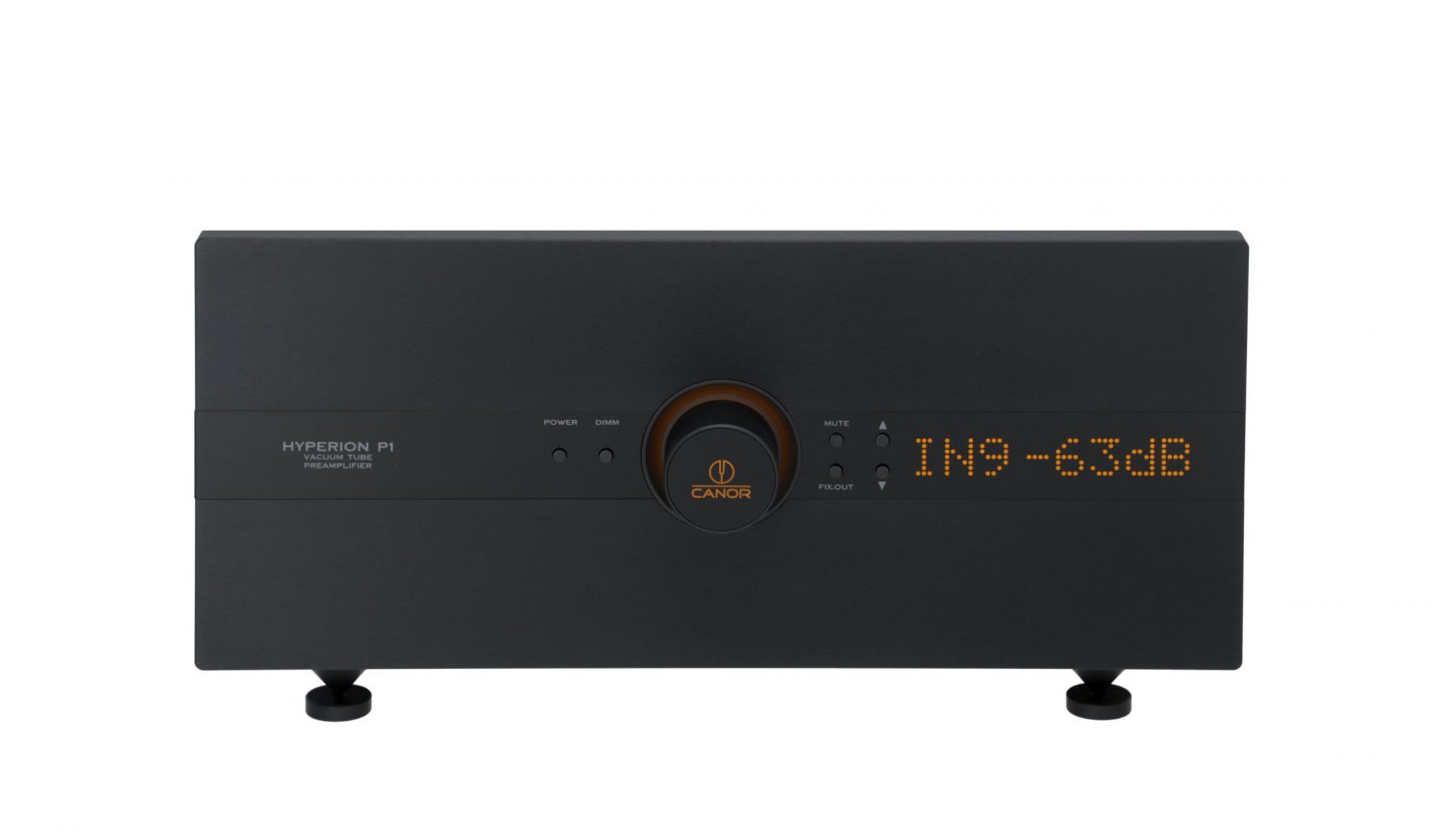

Hyperion P1 Reference Line

Vacuum Tube Preamplifier

Pure Class A with zero feedback

  • Solid aluminium chassis eliminates Vibrations
  • Zero global feedback – results in a sound that is more musical an realistic in numerous aspects
  • Perfect filtration – specially designed power transformer
  • Accurate Balanced Attenuator
  • The attenuator as well as the electronic part are installed on anti-vibration pads (columns)
  • The analogue part is separated from the power part by a solid aluminium wall (10 mm thick) which contributes to the elimination of interference
  • The attenuator control are galvanically separated via optical drivers.
  • SRP 12.000,00€

Technical Specification
Gain 11 dB
Frequency response  10 - 80 000 Hz ±0,1dB
Input impedance 30 kOhm

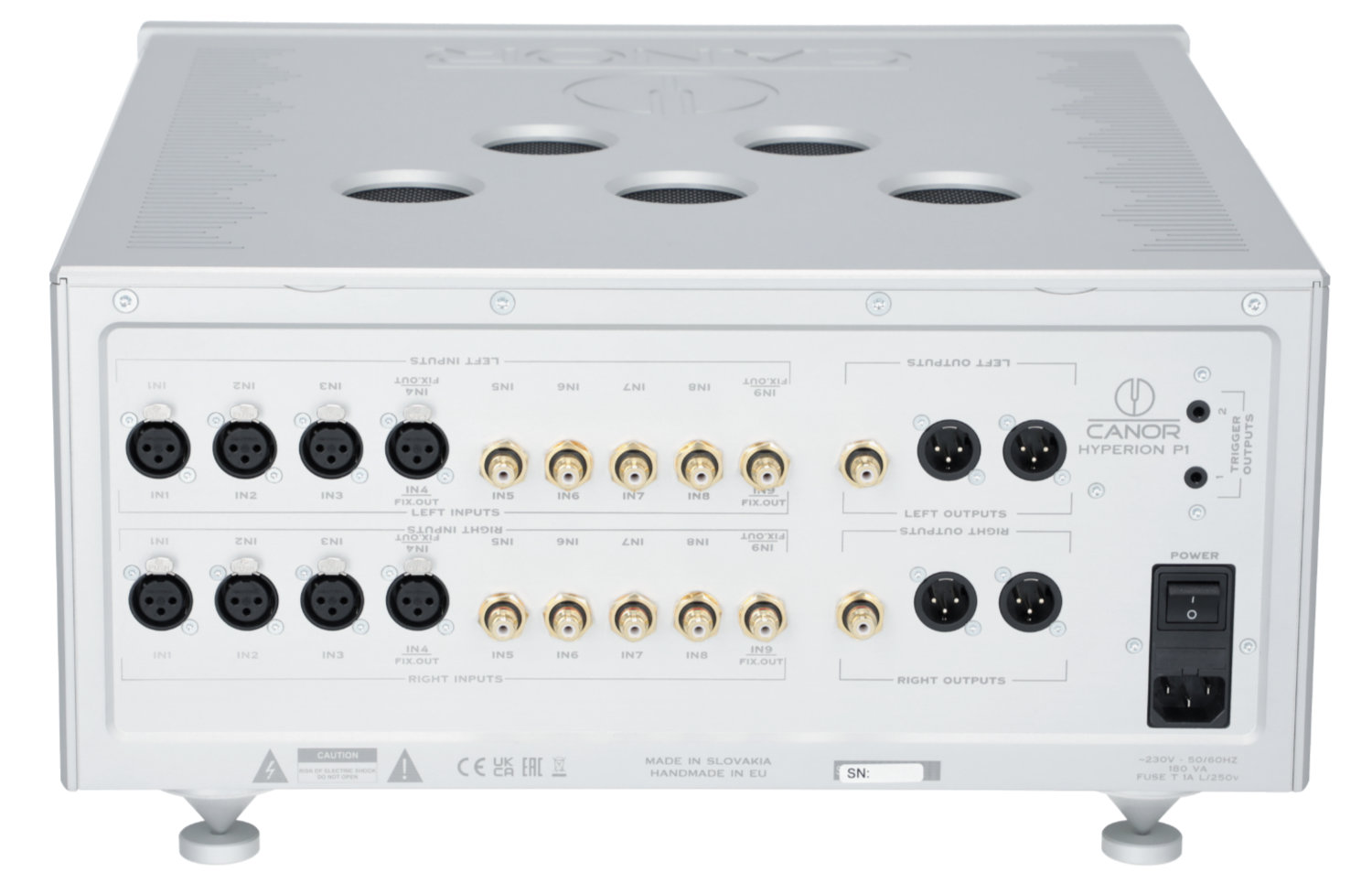

Inputs   4 x XLR, 5x RCA (1 x preout)
Harmonic Distortion <0,005% (1 kHz, 2V RMS) XLR
Harmonic Distortion <0,1 % (1 kHz, 40V RMS) XLR
Channel separation > 110 dB
Signal-to-noise ratio  >115 dB (20Hz-80kHz)
Tube complement  4 x 6922, 2x 6H30PI
Power        230 V / 50-60 Hz
Dimensions (w x h x d) 450 x 190 x 465 mm
Weight (net)  35 kg
